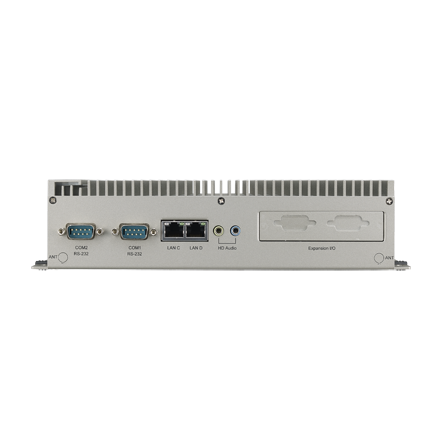

| UNO-2483G |
| Intel? Core? i7/i3/Celeron Regular-Size Automation Computer w/ 4 x GbE, 2 x mPCIe, HDMI/VGA |
| |
UNO-2483G-434AE |
UNO-2483G-474AE |
UNO-2483G-4C3AE |
| Environment |
Ingress Protection |
IP40 |
IP40 |
IP40 |
| Vibration Protection |
Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA). Operating, IEC 60068-2-64, 0.7Grms, random, 5 ~ 500Hz, 1hr/axis (HDD) |
Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA). Operating, IEC 60068-2-64, 0.7Grms, random, 5 ~ 500Hz, 1hr/axis (HDD) |
Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA). Operating, IEC 60068-2-64, 0.7Grms, random, 5 ~ 500Hz, 1hr/axis (HDD) |
| Operating Temperature |
-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow |
-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow |
-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow |
| Relative Humidity |
10 ~ 95% @ 40° C (non-condensing) |
10 ~ 95% @ 40° C (non-condensing) |
10 ~ 95% @ 40° C (non-condensing) |
| Shock Protection |
Operating, IEC 60068-2-27, 50G, half sine, 11ms |
Operating, IEC 60068-2-27, 50G, half sine, 11ms |
Operating, IEC 60068-2-27, 50G, half sine, 11ms |
| Storage Temperature |
- 40 ~ 85°C ( -40 ~ 185°F) |
- 40 ~ 85°C ( -40 ~ 185°F) |
- 40 ~ 85°C ( -40 ~ 185°F) |
| I/O Interface |
Audio |
Line-In, Line-Out |
Line-In, Line-Out |
Line-In, Line-Out |
| Displays |
1 x VGA, supports 1920x1200@60Hz 24bpp, 1 x HDMI 1.4a, supports 3200x2000@60Hz 24bpp |
1 x VGA, supports 1920x1200@60Hz 24bpp, 1 x HDMI 1.4a, supports 3200x2000@60Hz 24bpp |
1 x VGA, supports 1920x1200@60Hz 24bpp, 1 x HDMI 1.4a, supports 3200x2000@60Hz 24bpp |
| Grounding Protection |
Chassis Grounding |
Chassis Grounding |
Chassis Grounding |
| LAN |
4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet |
4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet |
4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet |
| Power Connector |
1 x 3 Pins, Terminal Block |
1 x 3 Pins, Terminal Block |
1 x 3 Pins, Terminal Block |
| Serial Ports |
2x RS-232, DB9, 50~115.2kbps, 2x RS-422/485, DB9, auto flow control, 50~115.2kbps |
2x RS-232, DB9, 50~115.2kbps, 2x RS-422/485, DB9, auto flow control, 50~115.2kbps |
2x RS-232, DB9, 50~115.2kbps, 2x RS-422/485, DB9, auto flow control, 50~115.2kbps |
| USB Port |
4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant) |
4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant) |
4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant) |
| System Hardware |
Expansion |
2 x Full-size mPCIe slot, mPCIe 2.0 |
2 x Full-size mPCIe slot, mPCIe 2.0 |
2 x Full-size mPCIe slot, mPCIe 2.0 |
| LED Indicators |
LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD |
LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD |
LEDs for Power, battery, LAN (Active, Status), Tx/Rx and HDD |
| Storage |
One mSATA, Two drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD), CFast drive by iDoor Technology (Optional) |
One mSATA, Two drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD), CFast drive by iDoor Technology (Optional) |
One mSATA, Two drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD), CFast drive by iDoor Technology (Optional) |
| Graphics Engine |
Intel® HD Graphics 5000/4400 |
Intel® HD Graphics 5000/4400 |
Intel® HD Graphics 5000/4400 |
| Memory |
On-board 8GB DDR3L 1333/1600 MHz |
On-board 8GB DDR3L 1333/1600 MHz |
On-board 4GB DDR3L 1333/1600 MHz |
| Processor |
Intel® 4th Gen Core™ i3-4010U ULT 1.7 GHz Dual Core, 3MB L2 |
Intel® Core™ i7-4650U ULT 1.7GHz Haswell Dual Core, 4MB L2 |
Intel® 4th Gen Celeron® 2980U ULT 1.6 GHz Dual Core, 2MB L2 |
| General |
Mounting |
Stand, Wall, VESA (Optional) |
Stand, Wall, VESA (Optional) |
Stand, Wall, VESA (Optional) |
| System Hardware |
System Chip |
Integrated Intel 8 Series Chipset |
Integrated Intel 8 Series Chipset |
Integrated Intel 8 Series Chipset |
| General |
OS Support |
Microsoft® Windows 7/8 |
Microsoft® Windows 7/8 |
Microsoft® Windows 7/8 |
| Power Consumption |
28W (Typical), 72W(Max) |
28W (Typical), 72W(Max) |
28W (Typical), 72W(Max) |
| Power Requirement |
24VDC ± 20% |
24VDC ± 20% |
24VDC ± 20% |
| Weight (Net) |
1.6kg (3.5lbs) |
1.6kg (3.5lbs) |
1.6kg (3.5lbs) |
| System Hardware |
BIOS |
AMI UEFI 128Mbit Flash BIOS |
AMI UEFI 128Mbit Flash BIOS |
AMI UEFI 128Mbit Flash BIOS |
| Watchdog Timer |
Programmable 256 levels timer interval, from 1 to 255 sec |
Programmable 256 levels timer interval, from 1 to 255 sec |
Programmable 256 levels timer interval, from 1 to 255 sec |
| General |
Certifications |
CE, FCC, UL, CCC, BSMI |
CE, FCC, UL, CCC, BSMI |
CE, FCC, UL, CCC, BSMI |
| Dimensions (W x H x D) |
252 x 149 x 62 mm (9.9" x 5.9" x 2.4") |
252 x 149 x 62 mm (9.9" x 5.9" x 2.4") |
252 x 149 x 62 mm (9.9" x 5.9" x 2.4") |
| Enclosure |
Aluminum Housing |
Aluminum Housing |
Aluminum Housing |
| Form factor |
Regular Size |
Regular Size |
Regular Size |
|
