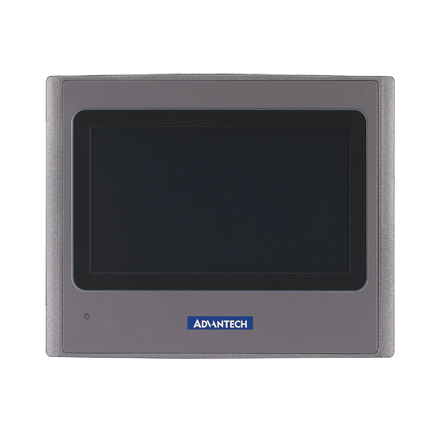

| WebOP-2040T |
| 4.3"WQVGA工業級可編程人機界面，支持研華WebOP Designer組態軟件 |
| |
|
WOP-2040T-S1AE |
| Display |
Size |
4.3" |
4.3" |
| Max. Resolution |
480 x 272 |
480 x 272 |
| General |
Power Consumption |
5 W |
5 W |
| Power Input |
24VDC ±10% |
24VDC ±10% |
| Mounting |
Panel Mount |
Panel Mount |
| Certifications |
CE, BSMI, CCC, UL, FCC Class A |
CE, BSMI, CCC, UL, FCC Class A |
| Dimensions |
130 x 106.2 x 36.4mm (5.11" x 4.18" x 1.43") |
130 x 106.2 x 36.4mm (5.11" x 4.18" x 1.43") |
| Cooling System |
Fanless design |
Fanless design |
| Enclosure Housing |
PC/ABS |
PC/ABS |
| OS Support |
HMI RTOS, WebOP Designer |
HMI RTOS, WebOP Designer |
| Weight (Net) |
0.3 kg (0.66 lbs) |
0.3 kg (0.66 lbs) |
| System Hardware |
CPU |
RISC 32 bits, 200MHz |
RISC 32 bits, 200MHz |
| Memory |
32 MB SDRAM |
32 MB SDRAM |
| Storage |
8MB NOR Flash & 128M NAND Flash |
8MB NOR Flash |

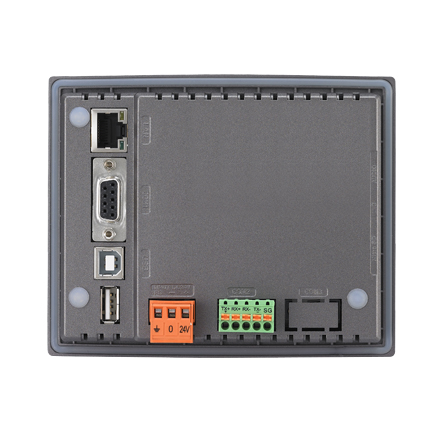

| I/O |
COM1: RS232/422/485 (DB9 Femail) COM2: RS422/485 (Terminal 5pin) COM3: RS232 |
COM1: RS232/422/485 (DB9 Femail) COM2: RS422/485 (Terminal 5pin) COM3: RS232 |
| LAN |
10/100Base-T x 1 |
|
| Battery Backup Memory |
128KB |
128KB |
| LCD Display |
Viewing Angle (H/V°) |
100/95 |
100/95 |
| Luminance (cd/m2) |
400 |
400 |
| Backlight Life |
LED, 20,000 |
LED, 20,000 |
| Max. Colors |
65,536 colors |
65,536 colors |
| Display Type |
WQVGA(16:9) TFT LCD |
WQVGA(16:9) TFT LCD |
| Environment |
Temperature (Operating) |
0 ~ 50°C (32 ~ 122° F) |
0 ~ 50°C (32 ~ 122° F) |
| Temperature (Storage) |
-20 ~ 60°C (-4 ~ 140° F) |
-20 ~ 60°C (-4 ~ 140° F) |
| Humidity (Operating) |
10 ~ 95% RH @ 40° C, non-condensing |
10 ~ 95% RH @ 40° C, non-condensing |
| Ingress Protection |
Front panel: IP66 |
Front panel: IP66 |
| Vibration Protection |
1 Grms (5 ~ 500 Hz) |
1 Grms (5 ~ 500 Hz) |
| Touchscreen |
Lifespan |
1 million times with an 8mm diameter finger of silicone rubber |
1 million times with an 8mm diameter finger of silicone rubber |
| Resolution |
Linearity |
Linearity |
| Touch Type |
4-wire, analog resistive |
4-wire, analog resistive |
|
